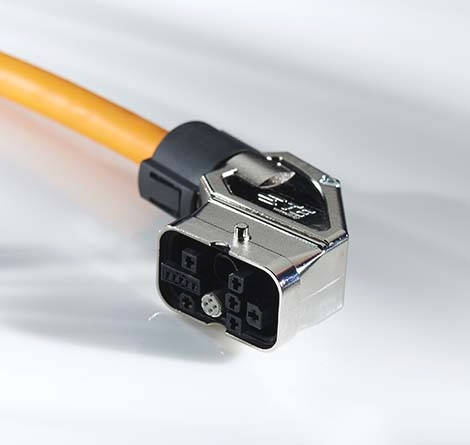

Motorman Hybrid Connector

| Machine building

The fully configurable Motorman solution integrates communication, signal and power for real-time control at higher performance and half the size of current standards.



Benefits

  • 50% Reduction in Housing Size
  • 70% Reduction in Cable
  • IP65 Certification

Features

  • Compact size of a traditional rectangular connector and hybrid construction (power, communication, signal)
  • Several pre-customized models available for different customer environments
  • Easy-to-open enclosure: safe configuration due to spacious side access to its interior
  • All signals are bundled in one interface which means only one cable for the customer
  • Offers space for two 4-pin Ethernet sockets, five power sockets, five signal sockets and one protection earth contact
  • Cat 5e (ISO/IEC11801) communication in heavy environment
  • Usage of TE"s MCON interconnection system and its stamped contacts



Applications

  • I/O connector on decentral servo motors
  • I/O connector on AC servo motors with PCB
  • Drives (amplifiers) - Packaging, assembly, woodworking or food producing machine - Distributed inverters
