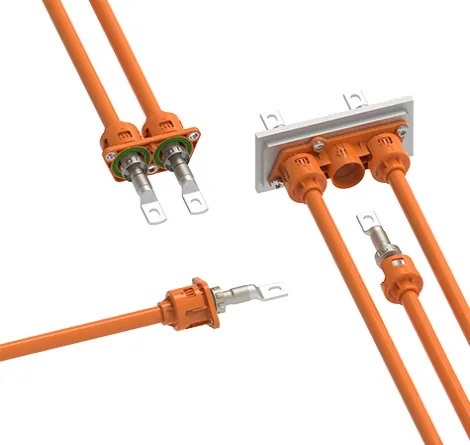

IPT-HD Power Bolt Connectors for Electric Vehicles

Part of our HIVONEX portfolio, our IPT-HD Power Bolt connectors are high-voltage and high-current connectors. Their new shielding design provides low-contact resistance and thicker options for conductor cross-sections used in Motor Control Units (MCU), electrical axles, and motor applications of electric vehicles operating in demanding environments.

Providing low-contact resistance — even after the vibration — with 1-,2- and 3- positions, our IPT-HD high-power connectors can be used in environments exposed to extreme temperatures (-40 ? to +125 ?) and to high engine-level vibrations. The power bolt high-voltage connector complies with ISO & LV standards.

With an ever-increasing demand for low-contact resistance and flexible assembly options for a wide range of diverse applications, the IPT-HD power bolt series comes in 50 mm², 70 mm², and 95 mm² conductor cross-sections. In addition to the traditional integral wiring harness assembly and an easy machining process for mounting holes, the IPT-HD power bolt connector series provides a separate, single-wiring harness for increased assembly flexibility.

Our IPT-HD bolted connectors are widely used for a range of applications in demanding, high-current, high-vibration environments,  such as buses, trucks, construction, agricultural, and passenger vehicles.
